Product detail

CG-971 Color pattern Generator

Brand TEXIO
Model CG-971
Status on sale

Specification

● Analog video signal/Audio signal output
● Conformity with NTSC,PAL,PAL-M and TNSC-4.43
● Selectable sync level
● Available for various and output patterns by system file
● Each staircase level in step pattern settable by voltage
● Natural image and Monoscope pattern output
● Max. 24 pattern installation
● Auto sequence mode
● GP-IB, RS-232C, and Digital IF (TTL) for remote control
● Half rack size of 19 inch EIA 2U

Rating

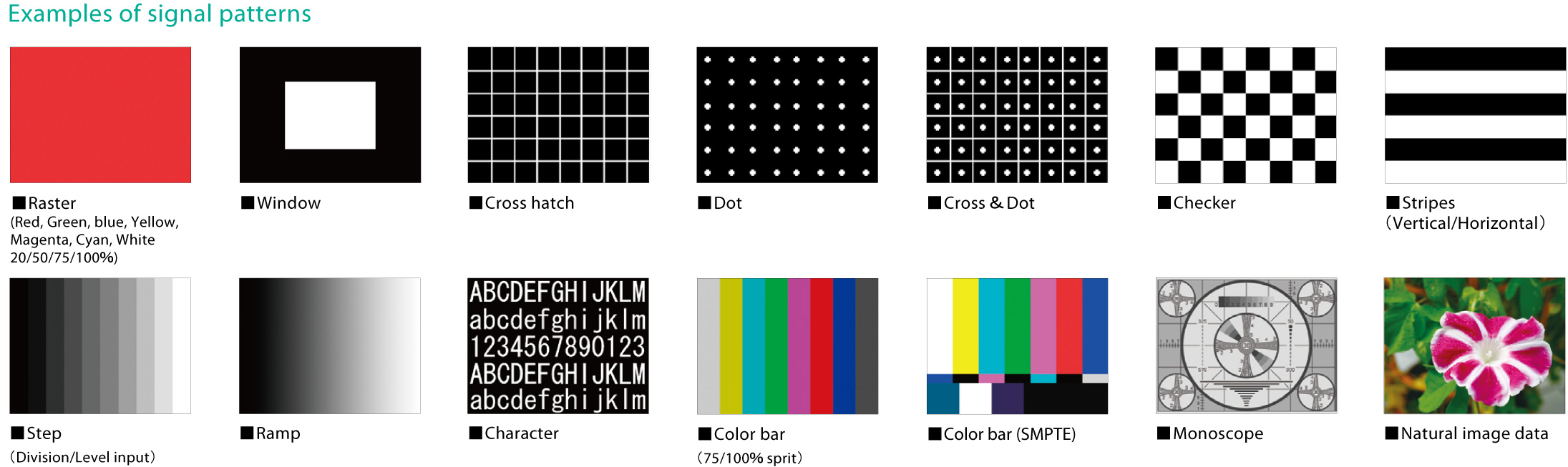

Basic patterns Raster, window, cross hatch, dot, cross & dot, checker, stripes (vertical / horizontal),
step (division input / level input), character, color bar (split / SPPTE), and monoscope
Natural Image data 712 X 574 dots, 1-,4-,8-,24- and 32-bit color BMP file format (Incompatible with RLE compression.)
Output functions Reversing, luminance component ON/OFF and chrominance component ON/OFF functions
Image formats NTSC-M, NTSC-J, NTSC-4.43, PAL-B/D/G/H/I, PAL-M
Video output (CVBS) 75Ω, BNC connector.
1.0V(p-p) : NTSC-M/J/4.43, PAL-M (0.714+0.286V(p-p)), PAL-B/D/G/H/I (0.7+0.3V(p-p))
Setup level: 7.5% NTSC-M, and PAL-M only, 0% Others
S connector (Y/C) Y+S(SYNC to 100% white) : 1.0V(p-p) (Differences according to the formats are equivalent to those of CVBS)
Accuracy = larger value of ±5% and ±20mV, 75Ω
C (burst) : 300mV(p-p), Accuracy =±5%, 75Ω
RGB output
(Not for PC use)
700mV(p-p), Accuracy = ±5%, 75Ω
SYNC output Front : V-SYNC/C-SYNC switching, TTL output, BNC connector, polarity may be switched by system file setting
Rear H.V sync output : TTL output, BNC connector, polarity may be changed by system file settingx
Audio output
Audio level 0.1V to 2.0V (Rand L may be set independently in 0.1V steps),
Accuracy = ±10% (with no termination at full scale)
Audio frequency 100Hz to 20kHz (R and L may be set independently in 100Hz steps),
Accuracy = ±10% (open end at full scale)
Outpt connectors RCA pin jacks, 2-channel (stereo), unbalance, 600Ω
Others
Sequence 24 steps max. May be changed up to maximum of 60 seconds in units of 1 second per step. Automatic and step operation are selectable.
Compatible CF cards FAT12, FAT16 and FAT32 only. Not compatible with NTFS. Capacity is 2GB or less.
* We use 2GB or smaller-capacity CF cards made by SAN DISK CO., LTD. To check operations.
It will not warrant the performance if the user uses other CF cards.
LCD display 2-line, 40-digit LCD (with LED backlight)
External control RS-232C, GP-IB and digital interface (TTL level, parallel) are selectable.
Accessories Instruction manual, power cord, and application disc
* Setup application software : Compatible with MS Windows 98/ME and Windows 2000/XP/VISTA
* CF card is not included as standard equipment
Power source AC 100V to 240V, 50Hz or 60Hz
Temp. / humid range Operating: 0°C to 40°C RH85% or less (No dew condensations)
Spec: 10°C to 35°C RH85% or less
Dimension and Weight 210(W) × 98(H) × 315(D)mm  ,Approx. 2.5kg
