FGX-295 50MHz Arbitrary Function Generator

FGX-295

on sale (Limited)
Singapore,Malaysia,
Thailand,Vietnam,
China,Korea Only

Arbitrary Function Generator

● Output range up to 50MHz for sine waveform and 25MHz for square waveform.
● 5 standard waveform: Sine, Square, Ramp, Pulse and Noise
● Arbitrary waveform function with 14bits, 125Mega sampling per sec.
● Flexible frequency sweep, burst waveform and modulation (AM, FM, PM, FSK and PWM) function.
● Standard equipment of USB, LAN and GP-IB
● Standard equipment of a useful PC application
● Memorizes up to 4kinds of an arbitrary waveform with 256 points.

Specification

● Output range up to 50MHz for sine waveform and 25MHz for square waveform.
● 5 standard waveform: Sine, Square, Ramp, Pulse and Noise
● Arbitrary waveform function with 14bits, 125Mega sampling per sec.
● Flexible frequency sweep, burst waveform and modulation (AM, FM, PM, FSK and PWM) function.
● Standard equipment of USB(USB-TMC), LAN(LXI) and GP-IB
● Standard equipment of a useful PC application (WAVEPATT)
● Memorizes up to 4kinds of an arbitrary waveform with 256 points.

Rating

Output waveform
Standard Sine, Square, Ramp, Triangle, Pulse, Noise, DC
Incorporated arbitrary Exponential rise, Exponential fall, Reverse ramp, Sinc, Heart Pulse
Waveform characteristics
Sine Frequency 1μHz~50MHz
Square Frequency 1μHz~25MHz
Ramp, Triangle Frequency 1μHz~200kHz
Pulse Frequency 500μHz~10MHz
Noise Bandwidth approx. 20MHz
Arbitrary Frequency 1μHz~10MHz
Waveform length 2K to 256K points
Amplitude resolution 14bits(including marks)
Sampling rate 125MS/s
Common characteristics
Frequency Resolution 1μHz
Amplitude Range 50Ω termination 10mV(p-p)~10V(p-p)
DC offset, DC Range (peak AC+DC) 50Ω termination ±5V(p-p)
Main output Impedance Approx. 50Ω
Sync output Level TTL (Impedance : approx. 50Ω)
Internal frequency standard Accuracy ±10ppm (90days) ±10ppm/±20ppm
External frequency standard (input) Lock range 10MHz±500Hz
Level 100mV(p-p)~5V(p-p)
External frequency standard (output) Lock range 10MHz
Level approx. 632mV(p-p) (0dBm)
Phase offset Range -360°~ +360°
Resolution 0.001°
Modulation
Internal modulation Sine, Square, Ramp, Triangle, Noise, Arbitrary
Frequency(Internal) 2mHz to 20kHz
AM Modulation 0.0% to 120.0%
FM Deviation DC to 25MHz
PM Deviation 0.0 degree to 360 degree
PWM Deviation 0.0 degree to 360 degree
FSK Internal modulation duty cycle 50% square
Frequency(Internal) 2mHz to 100kHz
External modulation input Voltage range ±5V full scale
Input resistance approx. 8.7k
Bandwidth DC to 20kHz
Sweep Waveform Sine, Square, Ramp, Arbitrary
Sweep time 1ms to 500 second
Burst Waveform Sine, Square, Ramp, Triangle, Noise, Arbitrary
Start/Stop, Phase -360 degree to +360 degree
Internal period 1µs to 500 second
Trigger
Trigger input Level TTL compatible
Trigger output Level TTL compatible, Termination more than 1k
Max. speed 1MHz
Parallel output
Clock output Frequency 1µHz to 50MHz
Data output Level TTL compatible, Termination more than 2kΩ
General specification
Power source Voltage range 100V to 240V (50Hz/60Hz) 100V to 120V (400Hz)
Power consumption max. 80VA
Operational circumstances Spec guaranty temperature range 18 degree. To 28 degree. (Humidity less than 80%, no condensation)
Others Interface USB (USB-TMC), GP-IB, LAN(LXI)
Dimensions 224(W)×107(H)×380(D)mm
Weight Approx. 3.6kg

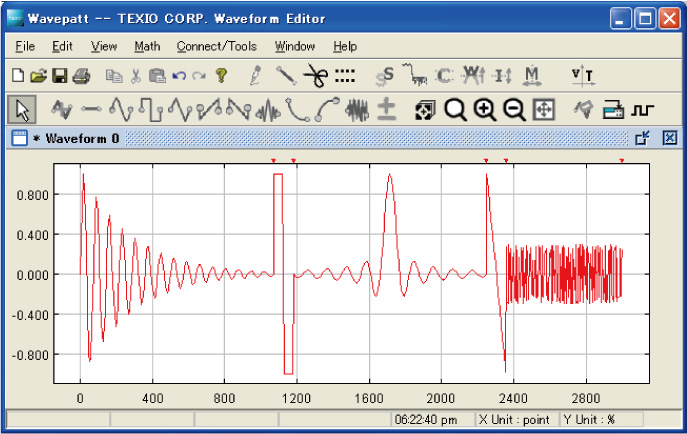

  • ● Application Software "WAVEPATT"
    This application software enables to create on the PC, an arbitrary waveform that outputs from FGX-295. The created waveform is to be transmitted to FGX-295 through GP-IB, LAN or USB.

Related Accessories

Type name Content
CB-2420P GP-IB Cable (2m)
GTL-246 USB2.0 Type A-Type B cable
TA-57

50 ohm Terminator

GTL-110

BNC - BNC Cable 1m

GTL-101

BNC - Alligator cable 1m

Download

Content Download File and Related Links
 Catalog FGX-295 Catalog
 Manual FGX-295 Instruction Manual
 Manual FGX-295 Application Manual (Wavepatt)
 Driver USB-TMC Driver, NI-VISA Runtime, NI-MAX
 Software FGX-295 Application software
 Related URL LabVIEW Driver:FGX-295
