• Power Supplies

Product List

Power Supplies

A regulated DC power supply is a device capable of stably delivering a set DC voltage and current. Because it maintains a constant output despite fluctuations in the load or changes in the input voltage, it is used in a wide range of applications, including the operational testing of electronic equipment, component evaluation, and research and development.

Multi Function Dropper Type

  • PPR Series Programmable High precision DC Power Supply
    テクシオ・テクノロジー

    ● 2.4-inch TFT-LCD Panel.
    ● Low noise: Temperature controlled cooling fan.
    ● Remote sensing to compensate for voltage drop in load leads .
    ● Output On/Off delay control.
    ● CV, CC priority start function. (prevents overshoot with output ON)
    ● Adjustable voltage and current slew rates.
    ● Bleeder circuit ON/OFF setting.
    ● OVP, OCP and OTP protection.
    ● Supports test sequence.
    ● With 3 measuring currents rage.
    ● Built-in USB and LAN interface.
    ● GPIB interface (G Type).
    ● External trigger control function.

    Product details

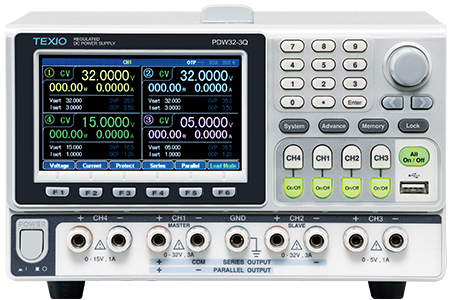

  • PDW Multifunctional DC regulated power supply
    テクシオ・テクノロジー

    ● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA
    ● Equipped with electronic load function (CH1, CH2 / CC, CV, CR mode)
    ● Low noise/low ripple: ≦350μVrms/≦2mArms (for PDW32-3DG)
    ● Series/parallel tracking function (CH1-CH2)
    ● Output delay/output monitoring/output record function
    ● Protection function: OVP/OCP/OTP/OPP (when loading)
    ● Sequence function (CH1/CH2)
    ● Internal memory function (panel settings/sequence/output delay/output record)
    ● Power output from USB power supply port (3CH model)
    ● Remote sensing function (1CH model, 3CH model except PDW32-3TG)
    ● 4.3 inch color TFT LCD
    ● Standard interface: USB, RS-232C, GP-IB, LAN, external I/O
    ● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA
    ● Equipped with electronic load function (CH1, CH2 / CC, CV, CR mode)
    ● Low noise/low ripple: ≦350μVrms/≦2mArms (for PDW32-3DG)
    ● Series/parallel tracking function (CH1-CH2)
    ● Output delay/output monitoring/output record function
    ● Protection function: OVP/OCP/OTP/OPP (when loading)
    ● Sequence function (CH1/CH2)
    ● Internal memory function (panel settings/sequence/output delay/output record)
    ● Power output from USB power supply port (3CH model)
    ● Remote sensing function (1CH model, 3CH model except PDW32-3TG)
    ● 4.3 inch color TFT LCD
    ● Standard interface: USB, RS-232C, GP-IB, LAN, external I/O
    ● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA

    Product details

  • PPX Series High-precision DC Power Supply
    テクシオ・テクノロジー

    CV, CC priority start function.
    Four levels of current measurement resolution (min. 0.1μA) / two levels of voltage measurement resolution (min. 0.1mV)
    Power output ON/OFF delay function
    Adjustable voltage and current slew rate
    Bleeder circuit control
    Delayed over-current protection(OCP Delay)
    Sequential power output function
    Remote Sensing function
    Data Logger
    10 sets of memory function
    Over voltage protection, under voltage limit, over current protection, over temperature protection, AC alarm function
    Supports K Type thermocouple temperature measurement
    Interfaces: USB, LAN, RS-232, RS-485, Analog Control; Opt: GP-IB
    Size: 3U high, in line with 1/4 Rack

    Product details
