DL-2060 Digital Multimeter

DL-2060

on sale (Limited)
Singapore,Malaysia,
Thailand,Vietnam,
China,Korea Only

Tricolor VFD, High Resolution Digital Multimeter

● Tricolor Vacuum Fluorescent Display (VFD)
High resolution of 5x7-dot matrix tricolor (red, yellow, white) High resolution of 5x7-dot matrix tricolor (red, yellow, white) part and for measurement range in lower part simultaneously.
● Upper and Lower Limit Level Function
Automatic judgment of measurement adequacy in accordance with setting range from the points of upper/lower limit. If judged false, the unit beeps and displays a message “HI” or “LO”. Deactivating USB interface setting, a pulse signal generated by limit test is transmitted through the USB terminal to the external device directly.

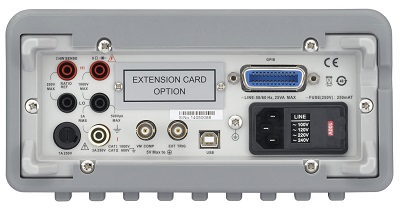

● USB and GP-IB (GP-IB is equipped with DL-2060VG only) interface
USB interface as standard equipment. The DL-2060VG is equipped with both GP-IB and USB interface. Digital multimeter is controlled by SCPI command.
● Multipoint Scanner Card up to 20 channels
With an optional multipoint scanner card OP-42 (OP-41), different input signals up to 20 (10) channels can be automatically changed for measurement. Scanning channels, scanning times and scanning intervals are selectable. The unit can be installed by users easily. (DC voltage, AC voltage, resistance, frequency, cycle can be measured by OP-42 and OP-41)
● Useful Application Software
The application software (DL-TOOL & DL-LINK) attached to the DL-2060 can control panel setting and send measured data to Microsoft Excel and Word.

Specification

●Resolution: 6 1/2 digits.
●5*7 dot matrix VFD, dual displays with 3-color annunciators.
●12 standard measurement functions & 8 math functions.
●Stability, Accuracy and Speed (2000RDGS/Sec at 4 1/2 Digit, 50 RDGS/Sec at 6 1/2Digit in 60 Hz)
●Multi-Points Scanner Card: Up to 10 Channels. (Optional)
●Built-in USB and GPIB (VG type only) Interfaces.
●Easy & Free PC applications.

Rating

DC Characteristic Accuracy +/-(Rdg% + range%) *1

Function Range *2 Resolution Input R Year (23°C±5°C)
DC Voltage
*3		 100.0000mV 0.1μV > 10GΩ 0.0050 +0.0035
1.000000V 1.0μV > 10GΩ 0.0040 + 0.0007
10.00000V 10μV > 10GΩ 0.0035 + 0.0005
100.0000V 100μV 10MΩ 0.0045 + 0.0006
1000.000V 1mV 10MΩ 0.0045 + 0.0010
Function Range *2 Resolution Shunt R Year (23°C±5°C)
DC Current 10.00000mA 10nA 5.1Ω 0.050 + 0.020
100.0000mA 100nA 5.1Ω 0.050 + 0.005
1.000000A 1μA 0.1Ω 0.100 + 0.010
3.00000A 10μA 0.2Ω 0.120 + 0.020
Function Range Resolution Test Current Year (23°C±5°C)
Resistance 100.0000Ω 100μΩ 1mA 0.010 + 0.004
1.000000kΩ 1mΩ 1mA 0.010 + 0.001
10.00000kΩ 10mΩ 100μA 0.010 + 0.001
100.0000kΩ 100mΩ 100μA 0.010 + 0.001
1.000000MΩ 1Ω 5μA 0.010 + 0.001
10.00000MΩ 10Ω 500nA 0.040 + 0.001
100.0000MΩ 100Ω 500nA // 10MΩ 0.800 + 0.010
Diode test 1.0000V 10μV 1mA 0.010 + 0.020
Continuity 1000.00Ω 10mΩ 1mA 0.010 + 0.030

AC Characteristic Accuracy +/-(Rdg% + range%) *7

Function Range *6 Resolution FFrequency Hz Year (23°C±5°C)
AC Voltage (TRMS) 100.0000mV 0.1μV 3 to 5 1.00 + 0.04
5 to 10 0.35 + 0.04
10 to 20k 0.06 + 0.04
20k to 50k 0.12 + 0.05
50k to 100k 0.60 + 0.08
100k to 300k 4.00 + 0.50
1.000000V
10.00000V
100.0000V
750.000V
*9		 1.0μV to 1mV 3 to 5 1.00 + 0.03
5 to 10 0.35 + 0.03
10 to 20k 0.06 + 0.03
20k to 50k 0.12 + 0.05
50k to 100k 0.60 + 0.08
100k to 300k 4.00 + 0.50
1.000000A 1μV 3 to 5 1.00 + 0.04
5 to 10 0.30 + 0.04
10 to 5k 0.10 + 0.04
3.00000A 10μV 3 to 5 1.10 + 0.06
5 to 10 0.35 + 0.06
10 to 5k 0.15 + 0.06

Frequency and Period Characteristics *5

Function Range Frequency Hz 1 Year Aging(23°C±5°C)
Frequency
and Period		 100mV to 750V 3 to 5 0.1
5 to 10 0.05
10 to 40 0.03
40 to 300k 0.01

General information

Power input 100V / 220V ± 10%
Power frequency 50 / 60Hz ± 10%
Power consumption Max 25VA
Operating temperature 0℃ to 50℃
Operating humidity 0℃ to 30℃ 80% RH
Stock temperature -10℃ to 60℃
Maximum elevation Max 2000m
Dimension 224(W)×113(H)×373(D)mm
Weight Approx. 4.4kg
Interface USB (Type-B),GP-IB (DL-2060VG ),RS-232C(DL-2060VR )
Safety regulation EN61010-1:2001(2nd Edition)
EMC regulation EN61326-1:2006
Attached accessories Power cable, USB cable, Test lead, Fuse, Manual

*1 : Specifications are for 6 1/2 digit and two hours warm up.
*3 : a. Using continuous triggering for A/D Converter
b. Input current have to be less than 30 pay at 25 C/deg.
c. Input protection for all range is 1000Vpk.
*4 : a. Specification for 4 and 2 wire ohms use math Null function
b. Lead cable resistance are less than 10% at 100 and 1k ranges
c. Input protection for all range is 1000Vpk
*5 : Specifications are for 6 1/2 digit and two hours warm up.
*6 : 20% over range on all ranges except 750VAC range
*7 : Specifications are for 6 1/2 digit and two hours warm up, 3Hz filter
*8 : 20% over range on all ranges except 750VAC range
*9 : 750VAC range limit is 100kHz
