PDS-A Series Hybrid (Switching and Dropper) method Regulated DC Power Supplies
PDS-ASeries
on sale
Low noise & Low Ripple & Compact Power Supplies
As compared with dropper-method DC power supplies, the unique switching and dropper circuit systems bring low output noise at same level, light weight less than half, and compact body. PDS-A power supply corresponds to EU RoHS regulation in consideration of environment. GP-IB, RS-232C, USB and LAN optional control boards are available and users are able to download API and drivers software from TEXIO web-site.
Watch a video clip

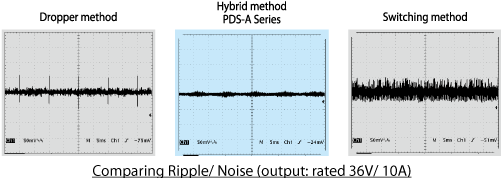

直流安定化電源リップルノイズ比較波形
スイッチング方式、ドロッパ方式、低ノイズハイブリッド方式の3つの整流方式における?リップルノイズの比較波形になります。
Related Products
PS-A / PS-AR Series Regulated DC Power Supplies Low ripple / noise
0.5mVrms (30mVp-p) same as doropper method

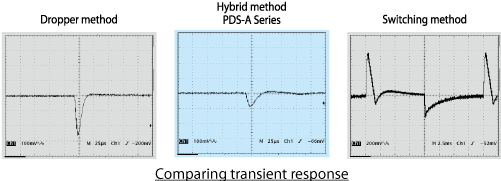

High speed transient response at 100μs(typ)
(Approx. 1ms for switching method power supplies)
Compared to Doropper method
Specification
● Satisfying CE Mark Certification Requirements
● Series/Parallel Operation
● 3-points Voltage/Current Preset
● Various Protection Functions
● Off timer function
● Controlling transient build-up current function
● Sequence function
● External analog control function
Rating
| Model | Output | Ripple | Line regulation |
Load regulation |
Dimensions W×H×D(mm) |
Max. dimensions W×H×D(mm) |
Power consumption VA(approx.) |
Weight kg (approx.) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage Current |
CV | CC | CV | CC | CV | CC | |||||
| mVrms | mArms | mV | mA | mV | mA | ||||||
| PDS20-10A | 0V-20V 0A-10A |
0.5 | 10 | 2 | 5 | 3 | 5 | 140×124×364 | 140.8×141.2×415.5 | 340VA | 5.2 |
| PDS20-18A | 0V-20V 0A-18A |
0.5 | 10 | 2 | 5 | 3 | 5 | 140×124×364 | 140.8×141.2×415.5 | 570VA | 5.2 |
| PDS20-36A | 0V-20V 0A-36A |
0.5 | 10 | 2 | 10 | 3 | 5 | 210×124×364 | 210.8×141.2×415.5 | 1100VA | 7.5 |
| PDS36-6A | 0V-36V 0A-6A |
0.5 | 5 | 2.8 | 1 | 3.8 | 5 | 140×124×364 | 140.8×141.2×415.5 | 330VA | 5.2 |
| PDS36-10A | 0V-36V 0A-10A |
0.5 | 5 | 2.8 | 1 | 3.8 | 5 | 140×124×364 | 140.8×141.2×415.5 | 520VA | 5.2 |
| PDS36-20A | 0V-36V 0A-20A |
0.5 | 10 | 2.8 | 5 | 3.8 | 5 | 210×124×364 | 210.8×141.2×415.5 | 1050VA | 7.5 |
| PDS60-6A | 0V-60V 0A-6A |
0.5 | 5 | 4 | 1 | 3 | 5 | 140×124×364 | 140.8×141.2×415.5 | 510VA | 5.2 |
| PDS60-12A | 0V-60V 0A-12A |
0.5 | 10 | 4 | 5 | 3 | 5 | 210×124×364 | 210.8×141.2×415.5 | 1000VA | 7.5 |
Related Accessories
| Type name | Content |
|---|---|
| HK-11 |
Handle for PDS-A/PS-A Series. |
| OP-23P6 |
Parallel Master/Slave Connection cable for PS-A/PDS-A Series |
| OP-23S |
Series Master/Slave Connection Cable for PS-A/PDS-A Series |
| IF-70GU |
GP-IB/USB Interface Option for PS-A/PDS-A Series |
| IF-71RS |
RS-232Ｃ Interface Option for PS-A/PDS-A Series |
| IF-71LU |
LAN/USB Option Interface for PDS-A Series |
| CB-0603S |
Local bus cable (0.3m) |
| CB-0615S |
Local bus cable (1.5m) |
| CB-0630S |
Local bus cable (3m) |
| CB-06100S |
Local bus cable (10m) |
| CB-2420P | GP-IB Cable (2m) |
| GTL-246 | USB2.0 Type A-Type B cable |
| RM-608J | Rack mount adaptor for JIS |
| RM-608E | Rack mount adaptor for EIA |
| RJ-608-1/2 | Rack mount bracket for PSF、PS-A、PDS-A、LSA-1000. |
| RJ-608-1/3 | Rack mount bracket for PS-A,PDS-A,LSA-165/165V1/330. |
| RB-608A |
1/2 Size Blank Panel |
| RB-608B |
1/3 Size Blank Plnael |
| RB-608C |
1/4 Size Blank Panel |
| RB-608D |
1/6 Size Blank Panel |
| RB-608E |
1/12 Size Blank Panel |
Download
| Content | Download File and Related Links |
|---|---|
| Catalog | PDS-A Series Catalog |
| Manual | PDS-A Series Instruction Manual |
| Manual | IF-71RS / 70GU / 71LU / 70PS Instruction Manual |
| Manual | IF-71LU Instruction Manual |
| Driver |
USB driver/API/ Sample for PDS-A Series
- Device driver and support software for controlling the PDS-A series from a PC.
・Win10/11 compatible ・Sample source for VS2008/ExcelVBA Ver3.10C |
| Driver |
PDS-A USB Driver Ver3.20A
USB Driver(inf) , Access API (DLL)
Sample Source code VC#,VB.net,Excel vba |
